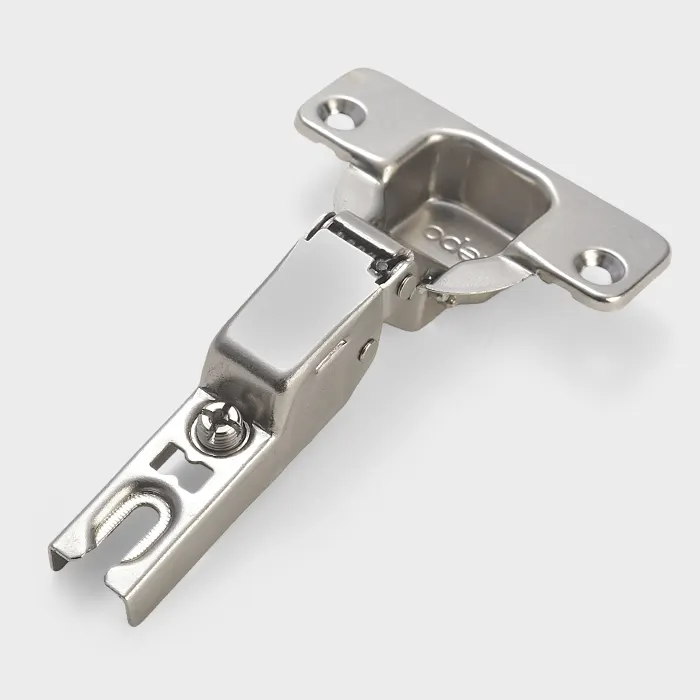

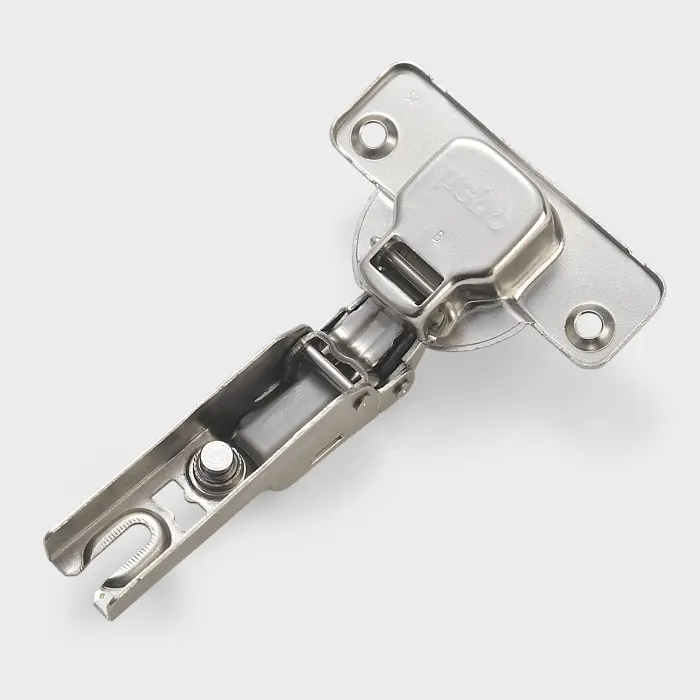

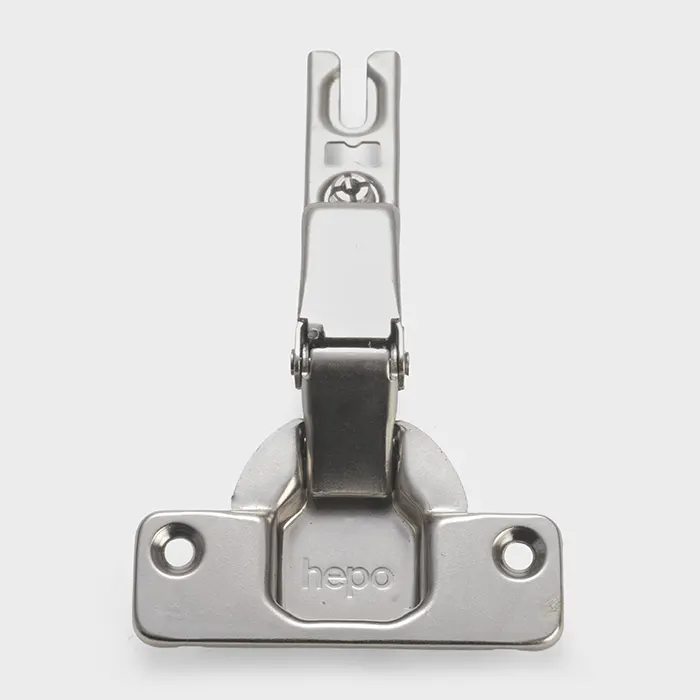

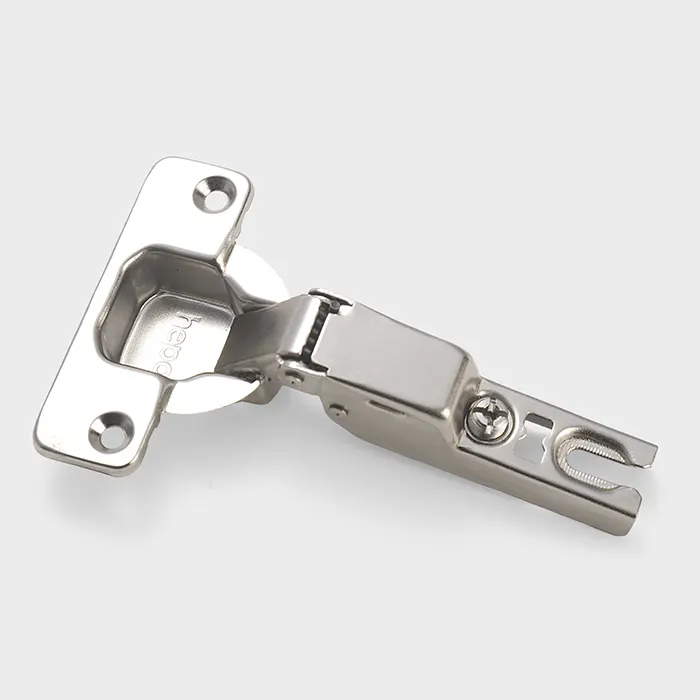

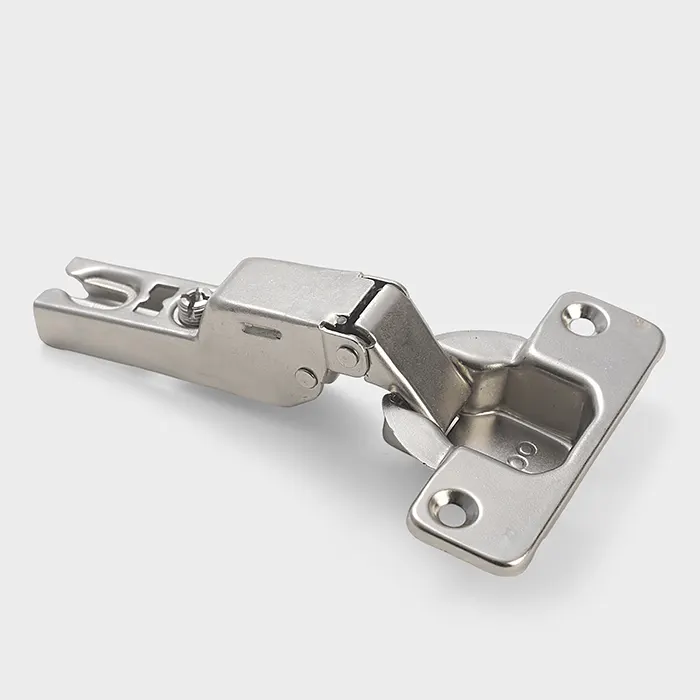

ClipOn Thick Door Hinge

Designed for modern modular furniture, our ClipOn Soft Close Hinges combine seamless aesthetics with smooth, silent performance. Whether you’re upgrading kitchen cabinets or outfitting wardrobes, choose from multiple crank options and mounting plate configurations, including 2-hole, 4-hole, and eccentric plates for maximum installation flexibility. Perfect for: wardrobes, kitchen cabinets, or any piece of modular furniture.

Feature

• Available in:
• Standard: 0 crank (Full Overlay), 9.5 crank (Half Overlay), 16 crank (Inset)
• Thick Door Variant: Supports 16–40 mm door thickness with a 95° opening angle
• Finishes: Nickel-Plated
• Material: Steel
• Closing Functionality: Soft Closing
• Mounting Type: Clip-On
• Mounting Plate: 2-hole, 4-hole, and eccentric mounting plates
• Door Thickness: 16–40 mm
• Cup Diameter: 40 mm
• Cup Depth: 12.9 mm
• Opening Angle: 95°
• 3-Way Adjustment
• Overlay: +2 mm / -2 mm
• Depth: +3 mm / -2 mm
• Height: On Mounting Plate
